Product Details

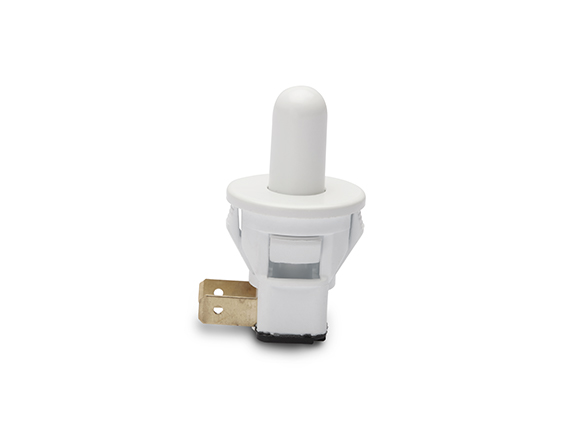

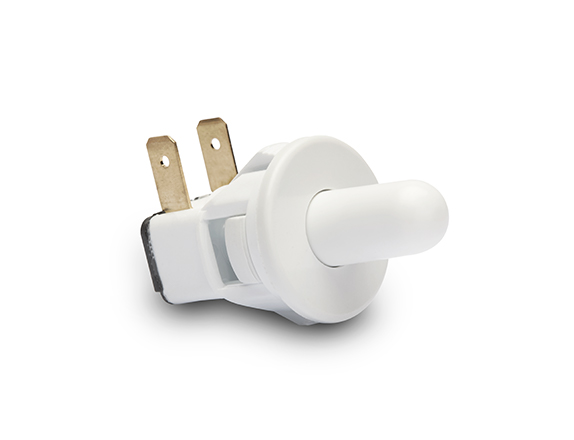

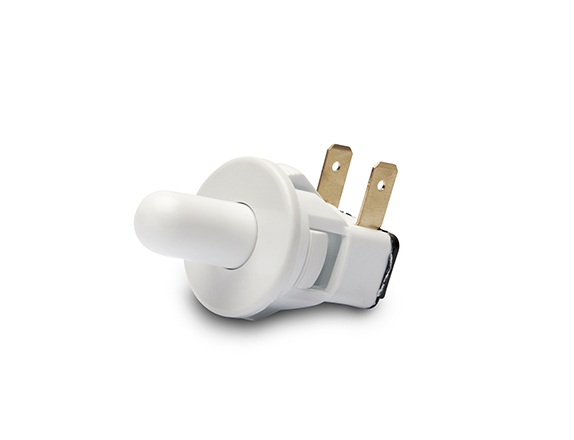

Pro Plunger Switch Configuration for Diverse Refrigerator and Freezer Door Geometries

The Pro Plunger Switch – Variant 2 is an alternative configuration of the Pro-specification plunger door switch range, engineered to accommodate the different mounting geometries, plunger travel specifications, and cabinet integration requirements found across the diverse landscape of domestic and commercial refrigerator and deep freezer designs. Where Variant 1 addresses one set of appliance dimensional standards, Variant 2 is configured for the specific door frame dimensions, switch pocket geometries, and actuation depth specifications of a complementary set of refrigeration appliance models — ensuring that Pro-specification plunger switch performance is available for the full range of refrigerator and freezer designs in the OEM's product portfolio.

The need for multiple plunger switch configurations arises directly from the design diversity of the refrigeration appliance industry. Refrigerators and freezers are produced in a wide variety of cabinet formats — top-freezer, bottom-freezer, side-by-side, French door, chest freezer, and commercial upright models — each of which may have different door liner geometries, different switch mounting positions, different plunger travel clearances, and different door closing forces that determine the required switch actuation characteristics. A single plunger switch variant cannot optimally serve all of these geometries, which is why the Pro Plunger Switch range includes multiple variants.

Variant 2 maintains the core Pro specification advantages — enhanced contact materials for extended cycle life, precision plunger travel tolerances for consistent switching point accuracy, and reliable spring return for prompt circuit restoration on door opening — while providing the specific dimensional and actuation profile that correctly matches the appliance models for which it is designated. Using the correctly specified variant for each appliance model ensures optimal performance, correct door feel, and full service life from the switch assembly.

The switch is manufactured under the quality management systems appropriate for appliance OEM supply, with dimensional and performance consistency across production batches that enables appliance manufacturers to rely on stable, predictable switch behaviour across their production volumes. Specification documentation is available to support OEM qualification and component approval processes for new product programmes.

For appliance OEM engineers specifying door switches for refrigerator and freezer models that require the Variant 2 dimensional and actuation specification, this switch provides the correct Pro-specification performance for the specific door geometry and circuit switching requirements of the designated appliance models.

Key Features

• Alternative dimensional and actuation profile for diverse refrigerator door geometries
• Pro-grade contact materials and plunger tolerances for extended service life
• Precise switching point consistency across OEM production volumes
• Reliable spring return for prompt light activation on door opening
• Production batch consistency for appliance OEM qualification requirements
