Product Details

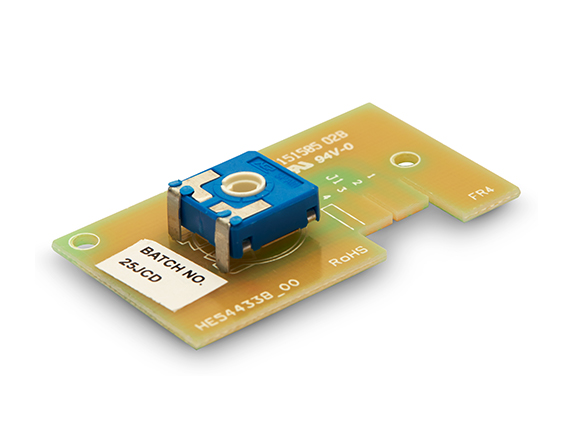

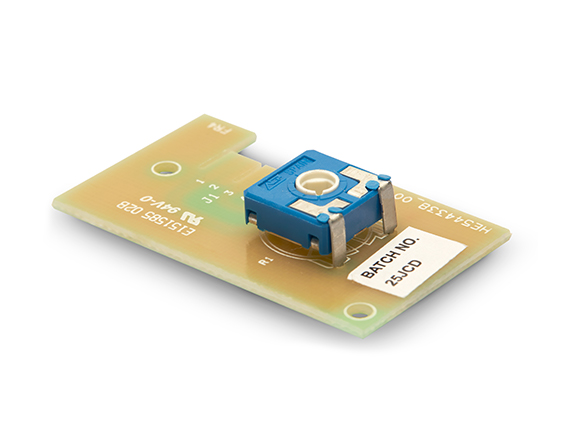

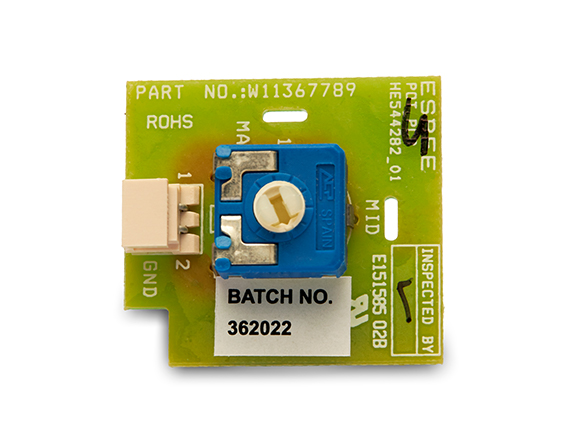

Potentiometer-Based Temperature Controller PCBA for Refrigerator and Freezer Thermostat Control

The POT PCBA – Temperature Controller is a potentiometer-based electronic temperature control board assembly designed for refrigerator, deep freezer, and cold storage appliance thermostat control applications. Providing the electronic interface between the user-adjustable temperature setting control and the compressor or cooling system drive circuit, the POT PCBA translates the user's desired temperature setting — dialled in via the potentiometer — into the control signals that regulate compressor operation and maintain the cabinet at the target temperature.

The potentiometer-based temperature control interface has been a trusted, cost-effective approach to refrigerator thermostat adjustment for decades, and remains relevant in a significant segment of the refrigerator market where analogue temperature control satisfies the product requirement without the added complexity and cost of digital control architectures. The user turns a knob to adjust the potentiometer, the POT PCBA reads the resulting resistance value as the desired temperature setting, and the control circuit regulates compressor cycling to achieve and maintain the cabinet at that temperature. Simple, direct, and reliable.

The POT PCBA is engineered for the temperature and humidity conditions of its installation position within the refrigerator cabinet or control module housing. The potentiometer component selected for the board provides the required resistance range and rotation feel for the temperature control knob interaction, with the tactile detent or smooth rotation characteristic specified by the appliance OEM's user experience design. The control circuit elements are matched to the compressor or cooling system interface of the specific appliance model, ensuring correct control signal levels, timing, and protection functions.

Production consistency is essential in thermostat control PCBA supply: variation in the potentiometer's resistance characteristic or the control circuit's response calibration between boards can result in systematic temperature offset across production — refrigerators that all run a degree or two warmer or cooler than their setting, generating customer complaints and warranty interventions. The POT PCBA is manufactured and calibrated to the tolerance specifications that ensure the temperature control function performs within the appliance OEM's specified accuracy band across the full production volume.

For refrigerator and cold appliance OEM engineers who need a reliable, correctly calibrated potentiometer-based temperature controller PCBA for analogue thermostat control applications, the POT PCBA – Temperature Controller delivers the control accuracy, potentiometer quality, and manufacturing consistency that cold appliance thermostat performance requires.

Key Features

• Potentiometer-based analogue temperature setting for refrigerator thermostat control
• Translates user dial setting into compressor control signals for cabinet temperature regulation
• Potentiometer specified for correct resistance range and rotation feel
• Calibrated to appliance OEM temperature accuracy specification across production volumes
• Humidity and temperature resistant for refrigerator control module environments
