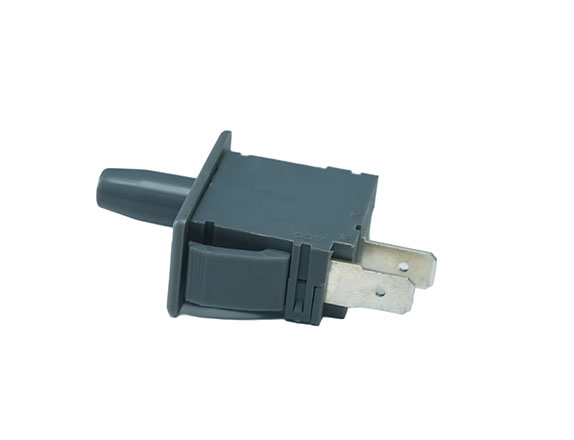

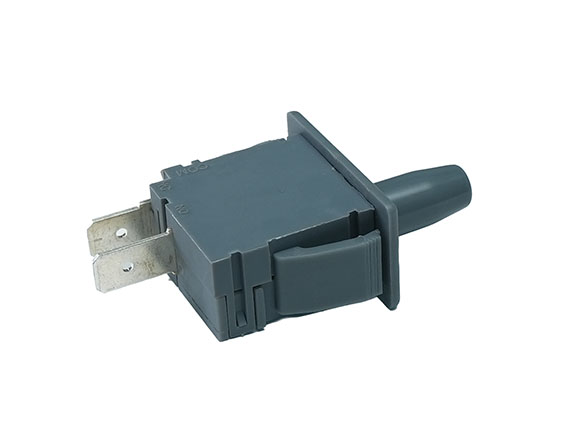

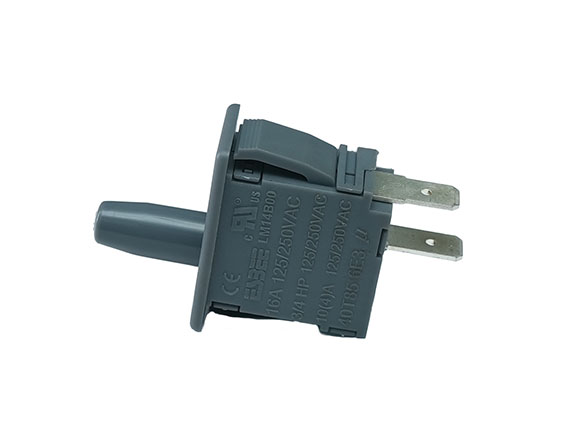

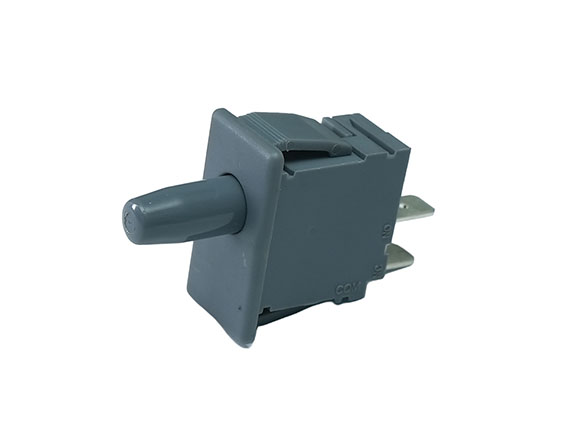

Safety Interlock Switch for HVAC System Panel Access and Maintenance Protection

The HVAC Interlock Switch is a safety switching device used in heating, ventilation, and air conditioning systems to provide electrical safety interlocking for access panels, filter doors, service hatches, and maintenance access points on HVAC equipment. By interrupting power to fans, compressors, or other HVAC operating components when an access panel is opened, the interlock switch protects maintenance technicians from contact with rotating machinery, live electrical components, and high-velocity airflow inside the unit during inspection, filter replacement, and service activities.

HVAC equipment contains multiple hazards that make access panel interlocking a safety requirement. High-speed centrifugal fans and axial air handling fans can cause serious injury if an access panel is opened while the fan is running — blades rotating at thousands of RPM present an immediate laceration and impact hazard. Compressor and electrical components within HVAC units are energised at mains voltage, creating shock risk if accessed without proper circuit isolation. The interlock switch provides a passive, automatic safety measure that interrupts the relevant circuits when the panel is opened, without requiring any deliberate action from the technician beyond opening the panel.

The interlock switch mechanism is designed for the actuation geometry of HVAC panel hinges, latches, and frame interactions — triggering at the correct panel position to ensure that hazardous components are de-energised before the panel is open wide enough to allow manual access to the hazard zone. The switch must actuate reliably on every panel opening, with no tendency to stick in the actuated or unactuated state that would either allow equipment to run with the panel open or prevent normal operation with the panel correctly closed.

The switch is engineered for the environmental conditions of HVAC installation — including resistance to the dust accumulation that builds up in air handling system environments, moisture from condensation in cooling system panels, and the vibration generated by fan and compressor operation. Electrical contact ratings are appropriate for the inductive loads of HVAC fan and compressor motors, with the arc suppression and contact material specification required for reliable motor circuit switching.

For HVAC system manufacturers, commercial building services engineers, and facilities safety managers who specify equipment safety interlocking for HVAC access panels, the Interlock Switch delivers the reliable safety circuit interruption and panel actuation performance that HVAC maintenance safety requires.

Key Features

• Safety interlock interrupting HVAC power circuits on access panel opening
• Protects maintenance technicians from rotating fans and live electrical components
• Actuates at correct panel position before access to hazard zone is possible
• Dust, moisture, and vibration resistant for HVAC installation environments
• Contact ratings for inductive HVAC fan and compressor motor circuit switching
