Product Details

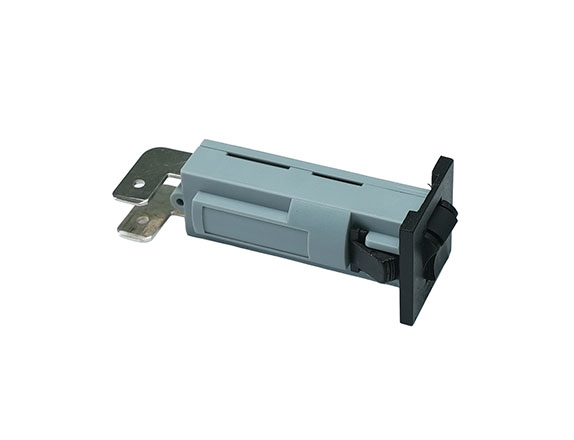

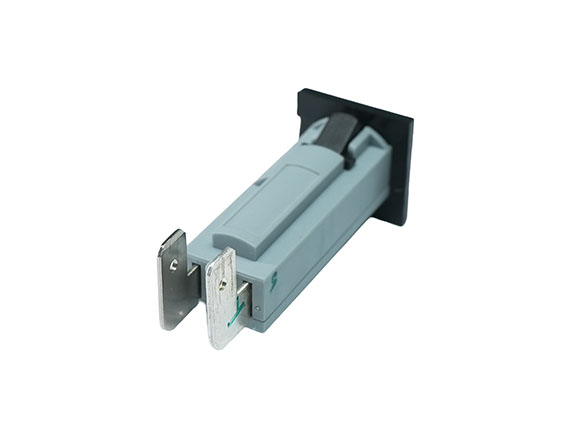

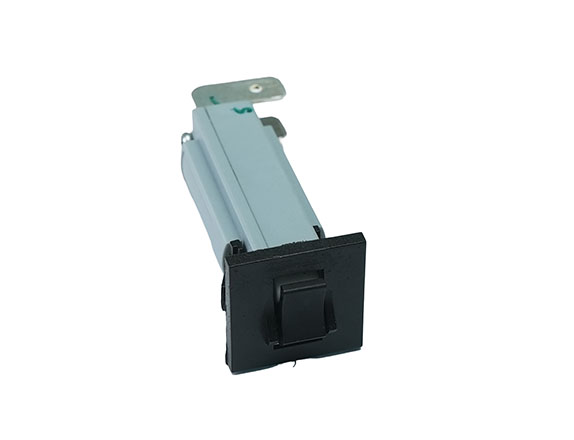

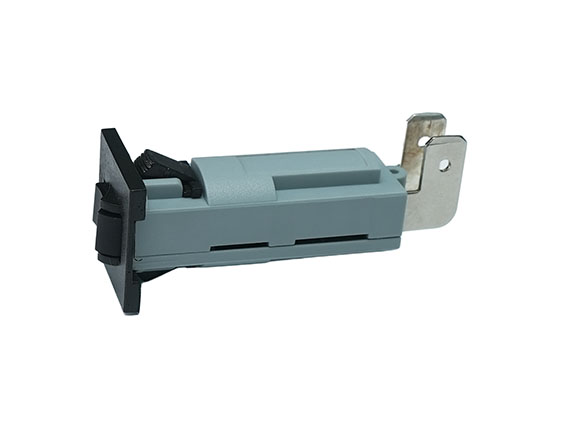

HVAC Circuit Breaker Switch for Overcurrent Protection and Manual Isolation

The HVAC Circuit Breaker Switch is a combined overcurrent protection and manual isolation device designed for integration into heating, ventilation, and air conditioning equipment to provide both automatic protection against overload and short circuit faults in HVAC electrical circuits and a manually operated isolation point for safe maintenance and service operations. By combining the protective and isolation functions in a single component, the circuit breaker switch reduces the electrical panel space and wiring complexity of the HVAC control system while delivering the both functions from one accessible control point.

Overcurrent protection is a fundamental electrical safety requirement for every HVAC circuit supplying compressors, fan motors, heating elements, and control electronics. Without overcurrent protection, a fault condition that causes excessive current flow — whether from motor overload, a winding short circuit, a wiring fault, or a stuck compressor — can rapidly overheat conductors and components to temperatures that cause insulation damage, component failure, or fire. The circuit breaker switch responds to overload and short circuit conditions by tripping automatically to the off position, interrupting the fault current before thermal damage occurs and before the fault can propagate to adjacent systems.

The manual switching function of the circuit breaker switch enables maintenance technicians to deliberately isolate the HVAC circuit before beginning service work — switching the breaker to the off position, locking it if LOTO procedures are implemented, and verifying isolation before opening equipment panels or handling electrical components. This deliberate, manual isolation provides positive confirmation that the circuit is open before any maintenance activity begins, complementing the automatic protective function with a proactive maintenance safety measure.

The circuit breaker switch is specified for the voltage and current rating of the HVAC circuit it protects, with trip characteristics appropriate for the motor starting currents and continuous running current of the specific HVAC equipment. The mechanical and electrical design is suited to the vibration and temperature conditions of HVAC equipment installation, maintaining reliable trip and reset performance across the operational environment of the appliance.

For HVAC OEM manufacturers, commercial building electrical engineers, and maintenance contractors who need combined overcurrent protection and manual isolation for HVAC equipment circuits, the Circuit Breaker Switch delivers the automatic fault protection and manual isolation capability that HVAC electrical system safety and maintenance compliance require.

Key Features

• Combined overcurrent protection and manual isolation in a single component
• Automatic trip on overload and short circuit for HVAC circuit fault protection
• Manual off position for deliberate isolation before HVAC maintenance operations
• Specified for HVAC motor starting currents and continuous circuit ratings
• Suitable for compressor, fan motor, heating element, and control circuits
