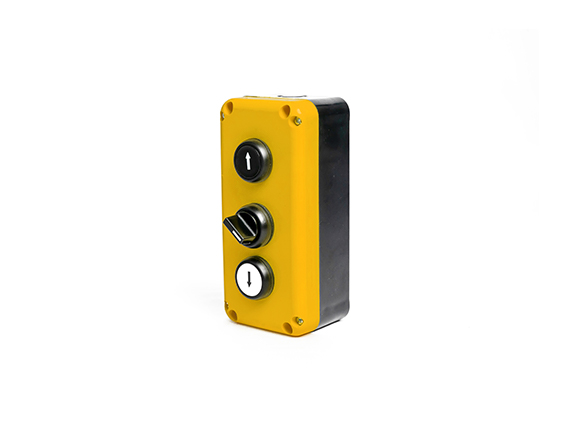

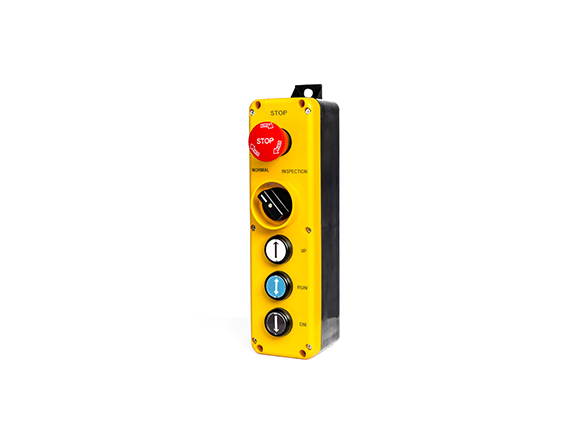

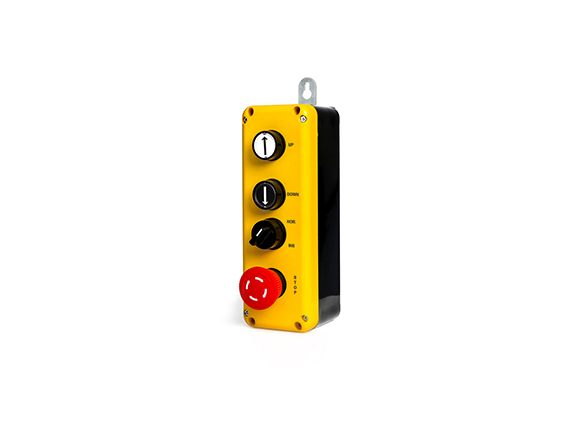

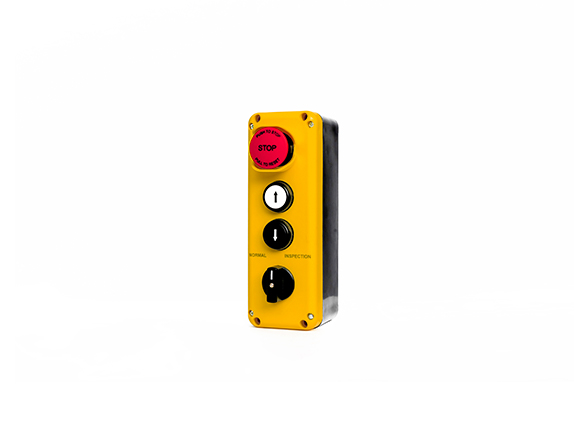

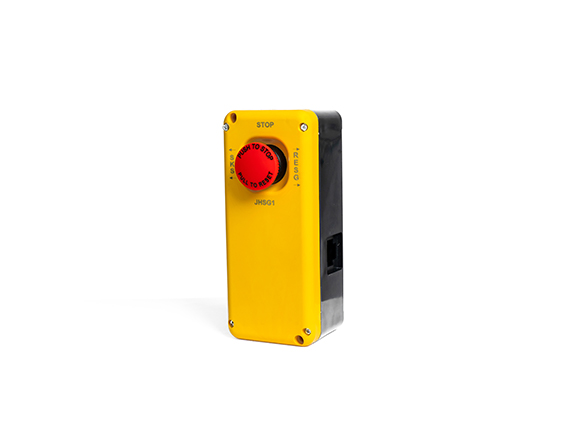

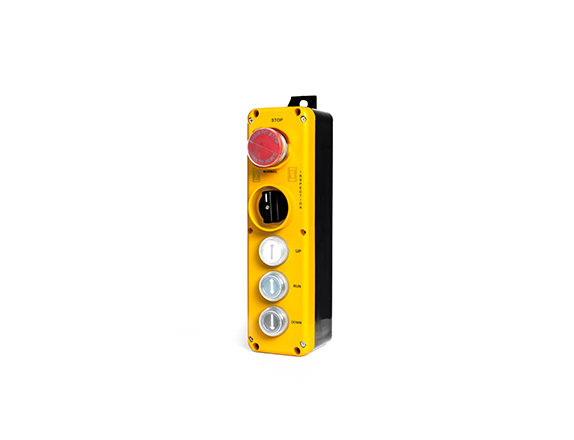

Elevator Pit Inspection Control Station for Safe Maintenance and Inspection Operations

Pit Inspection Devices are purpose-engineered elevator control stations installed in the elevator pit to provide maintenance technicians with direct, local control of the elevator car during inspection, maintenance, and fault diagnosis operations. Enabling controlled, slow-speed elevator movement from the pit level while all normal automatic and landing call operations are suspended, the pit inspection device is an essential safety tool that allows technicians to position the elevator car precisely for access and inspection — safely, under their full control, and in compliance with elevator safety regulations.

The ability to move the elevator car under direct inspection control from the pit is a fundamental requirement of safe elevator maintenance practice. Technicians inspecting the pit, checking buffer clearances, examining the underside of the car, or servicing pit-mounted equipment must be able to call the car to the required position safely without relying on a second operator at a landing level or using the normal automatic control system. The pit inspection device gives the technician this capability from their working position in the pit, maintaining full situational awareness and control throughout the inspection activity.

Pit Inspection Devices are designed to the specific functional and safety requirements of elevator maintenance standards, incorporating the mandatory features prescribed by EN 81 and equivalent international regulations for pit inspection control stations. These include clearly labelled directional controls for up and down car movement, an inspection speed limit function that prevents the car from moving faster than the regulated inspection speed, and an emergency stop device that immediately halts all elevator movement at any time during the inspection operation.

The device housing is engineered for the environmental conditions of the elevator pit — sealed against moisture ingress, resistant to dust and debris accumulation, and mechanically robust enough to withstand the handling and minor impacts associated with regular maintenance access in a confined working space. The control buttons and emergency stop are designed for clear, unambiguous operation, enabling technicians to operate the inspection station confidently even when wearing work gloves in a restricted pit environment.

The wiring and connection arrangement of the pit inspection device integrates directly with the elevator control system's inspection mode circuit, ensuring that the activation of inspection control immediately overrides normal automatic operation and prevents any floor call or automatic movement commands from being executed while the technician is working in the pit. This circuit integration is a non-negotiable safety requirement of compliant elevator inspection systems.

For elevator manufacturers, lift installation contractors, and maintenance service providers who need a reliable, regulation-compliant pit inspection control station that gives maintenance technicians safe, confident control of the elevator car during pit operations, the Pit Inspection Device is the correctly specified safety control solution for every compliant elevator installation.

Key Features

• Local pit-level inspection control for safe, technician-directed elevator movement
• Inspection speed limiting function in compliance with EN 81 and international standards
• Integrated emergency stop for immediate elevator halt during pit operations
• Sealed housing for moisture, dust, and mechanical impact resistance in pit environments
• Overrides automatic operation to prevent movement commands during pit access
