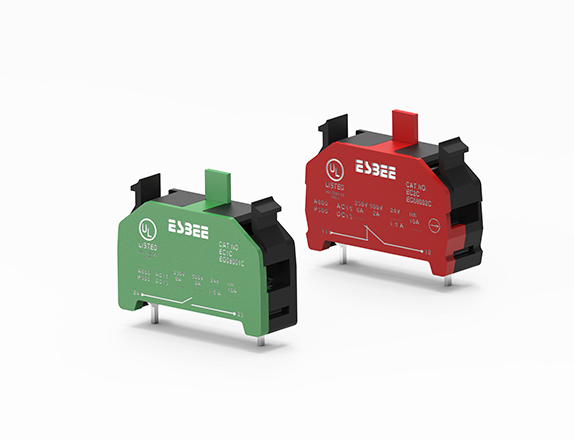

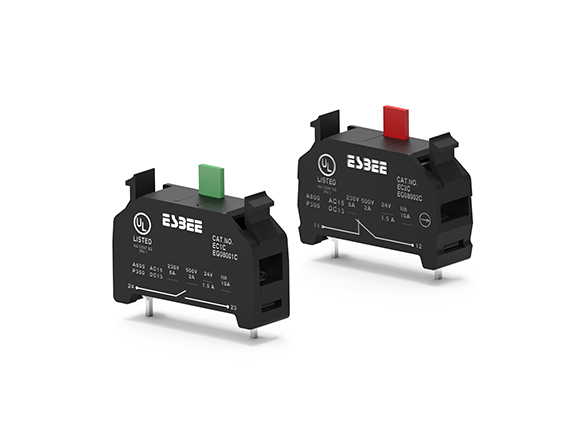

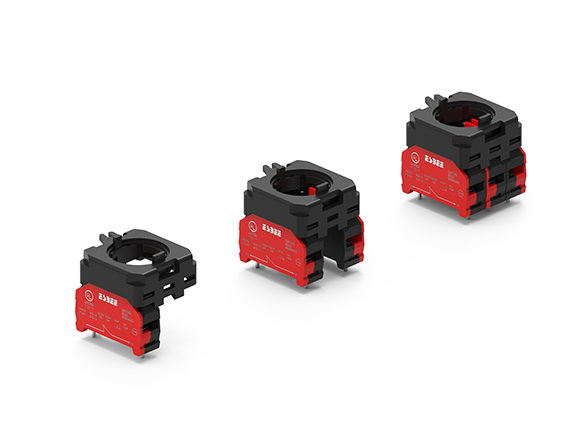

PCB-Mount Contact Block for Direct Elevator Push Button Integration on Printed Circuit Boards

The PCB Mounted Contact Block is a precision electrical switching component designed for direct soldered or press-fit mounting onto printed circuit boards (PCBs) used in elevator push button panel assemblies and elevator control interfaces. Where elevator operating panels incorporate PCB-based control electronics that integrate push button switching directly on the circuit board — rather than through discrete, panel-wired contact blocks — the PCB Mounted Contact Block provides the switching element that connects the mechanical push button actuation to the PCB's control circuit.

PCB-integrated push button switching is increasingly common in modern elevator operating panel design, where the trend toward compact, digitally controlled panel electronics places the push button switching function directly on the control board rather than on separately wired components. In these designs, the push button actuator mechanically engages the PCB-mounted contact block, which switches the signal directly on the board trace — eliminating individual wiring conductors, reducing assembly complexity, and creating a more compact, reliable panel assembly compared to conventionally wired systems.

The PCB Mounted Contact Block is engineered for the specific mechanical and electrical requirements of board-mounted switching applications. The terminal geometry is dimensioned for correct PCB land pad engagement, with soldering or press-fit termination options appropriate to the PCB assembly process. Actuator engagement force and travel specifications are matched to the push button body systems with which the contact block is used, ensuring correct tactile feel and reliable switching at the defined actuation force without excessive board stress.

Electrical contact ratings are specified for the signal-level switching duties typical of PCB-integrated elevator push button circuits, with low and consistent contact resistance that maintains signal integrity across the rated cycle life. The contact block body dimensions are designed for the PCB footprint spacing common in elevator panel board layouts, enabling optimal board area utilisation without compromising component accessibility for soldering or inspection.

For elevator operating panel PCB designers, panel manufacturers, and electronics engineers specifying switching components for PCB-integrated elevator push button systems, the PCB Mounted Contact Block provides the precise dimensional specification, correct electrical ratings, and assembly compatibility that PCB-based elevator panel design requires.

Key Features

• Direct PCB mounting for integrated elevator push button circuit board assemblies
• Solder and press-fit termination options for PCB assembly process compatibility
• Contact ratings matched to signal-level elevator panel switching requirements
• Actuator force and travel matched to Esbee elevator push button body systems
• Dimensioned for optimal PCB footprint utilisation in elevator panel board layouts
