Product Details

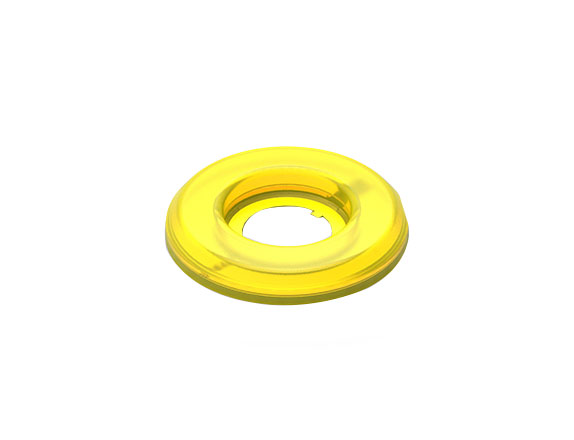

Backlit Illuminated Legend Plates for Industrial Push Button Panel and Control Station Identification

The Illuminated Legend Plate for industrial applications is a backlit identification component designed to provide clear, consistently visible labelling for push buttons, selector switches, indicator lights, and other control elements on industrial push button panels, machine control stations, and electrical panel operator interfaces. By providing its own integrated light source, the illuminated legend plate ensures that control labels remain readable in all ambient conditions — from brightly lit production floors to dimly illuminated machine access areas and night-shift production environments — eliminating the ambiguity of reading unlabelled or unlit controls that can lead to operator errors in industrial environments.

Clear, readable control identification is a fundamental requirement for safe, efficient machine and process operation. In industrial environments where the same style of push button is used for multiple different functions across a control panel, the legend plate is the only visual indicator that tells the operator which button controls which function. Unilluminated legend plates can be difficult to read in the variable lighting conditions of production floors, particularly for operators wearing safety glasses that reduce contrast perception or working in areas with strong directional overhead lighting that creates glare on panel surfaces. The illuminated legend plate eliminates these readability challenges.

Illuminated identification is also a practical maintenance advantage. Maintenance technicians working on machine control panels during fault diagnosis and repair activities frequently access panels in suboptimal lighting conditions — with the machine cabinet open and the overhead lighting blocked, or during night-shift operations with reduced facility lighting. Backlit legend plates maintain their readability regardless of ambient lighting conditions, enabling maintenance personnel to correctly identify controls quickly and confidently even in challenging working conditions.

The legend plate is available in standard industrial control function legends — START, STOP, EMERGENCY STOP, FORWARD, REVERSE, JOG, RESET, and other common machine control designations — as well as custom text configurations for machine-specific functions and process-specific control labels. Illumination colours are available to support colour-coding conventions that align with industrial safety standards for control panel colour identification.

For machine builders, panel designers, and industrial installation contractors who specify control panel identification to the highest standards of legibility, durability, and safety compliance, the Illuminated Legend Plate provides the backlit visibility, label durability, and custom configuration capability that professional industrial control panel design demands.

Key Features

• Backlit illumination for label readability in all ambient lighting conditions
• Eliminates operator errors from misidentified controls in variable lighting
• Standard industrial function legends and custom text configurations available
• Multiple illumination colours for safety standard colour-coding compliance
• Durable construction for high-contact industrial control panel environments
